Twilight White Flush-Mount Kit, Tesla Model 3 & Y

The Twilight White Flush-Mount Kit for Tesla Model 3 and Model Y is the version with a white bracket, made to blend in with a white car. The Twilight 300W sits low in the front, and the XBB system with a Tesla OBD2 adapter lets it follow your high beam without warning lights on the dash.

Fits

Tesla Model 3, 2019 to 2024, and Model Y, 2019 to 2025.

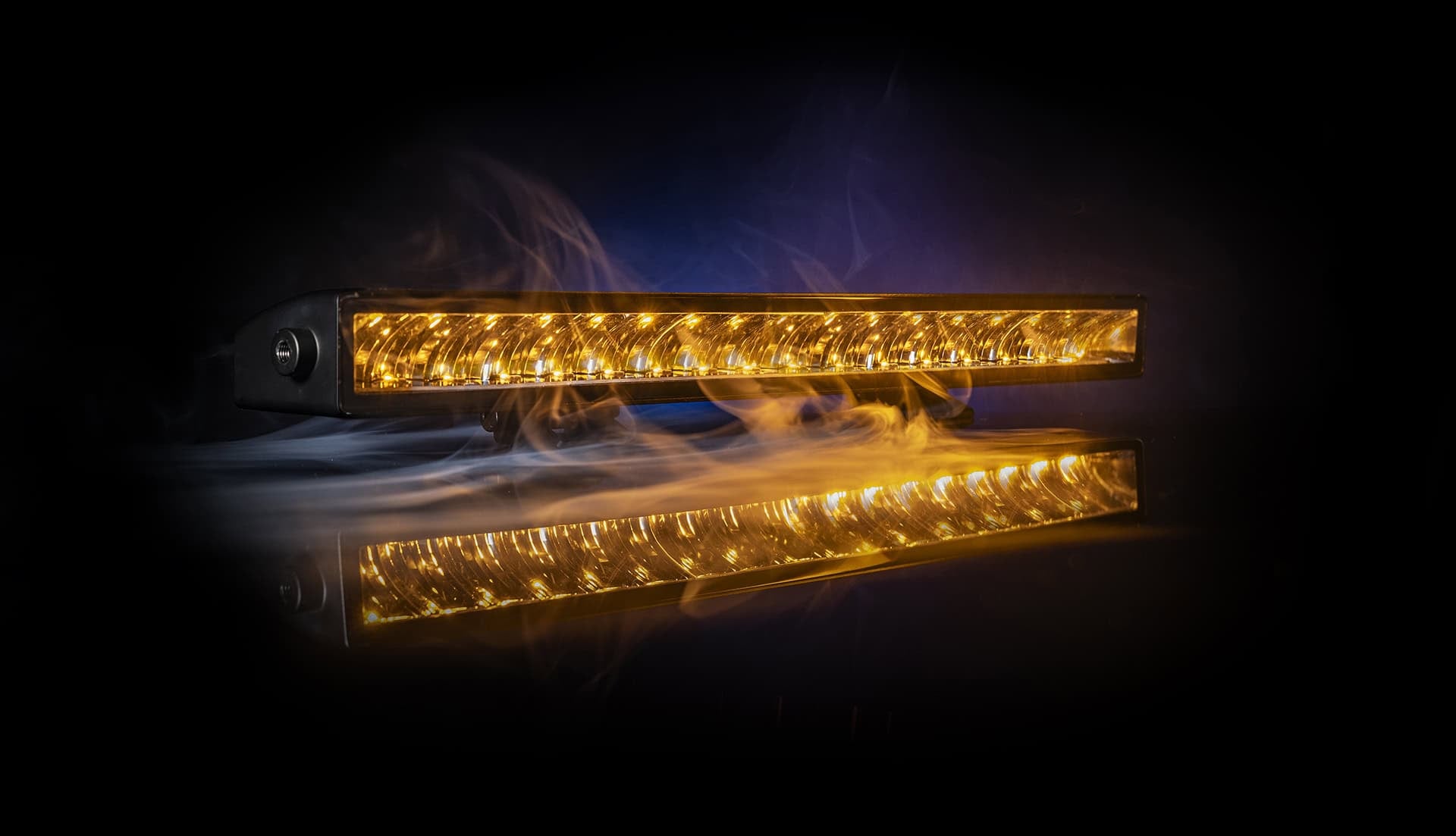

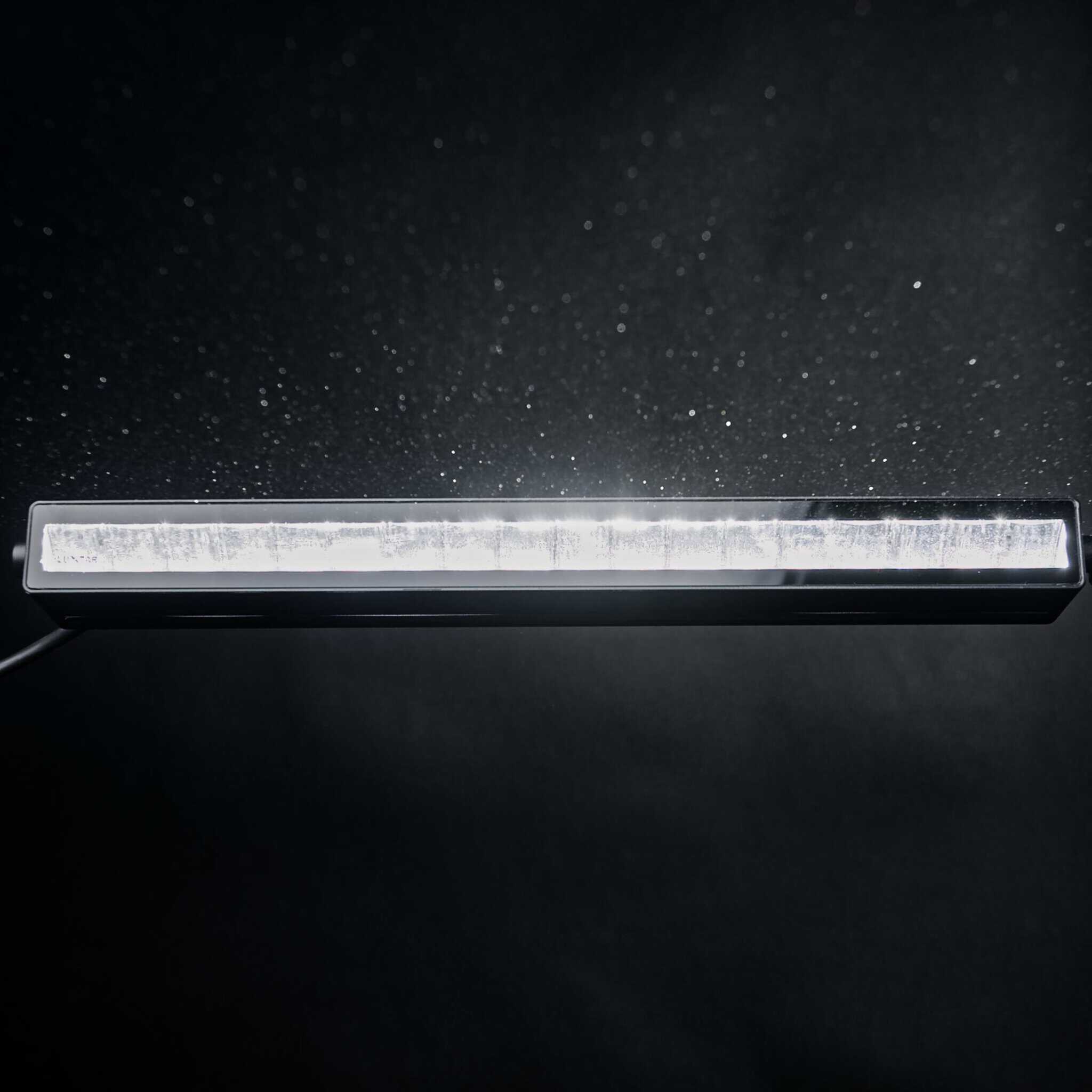

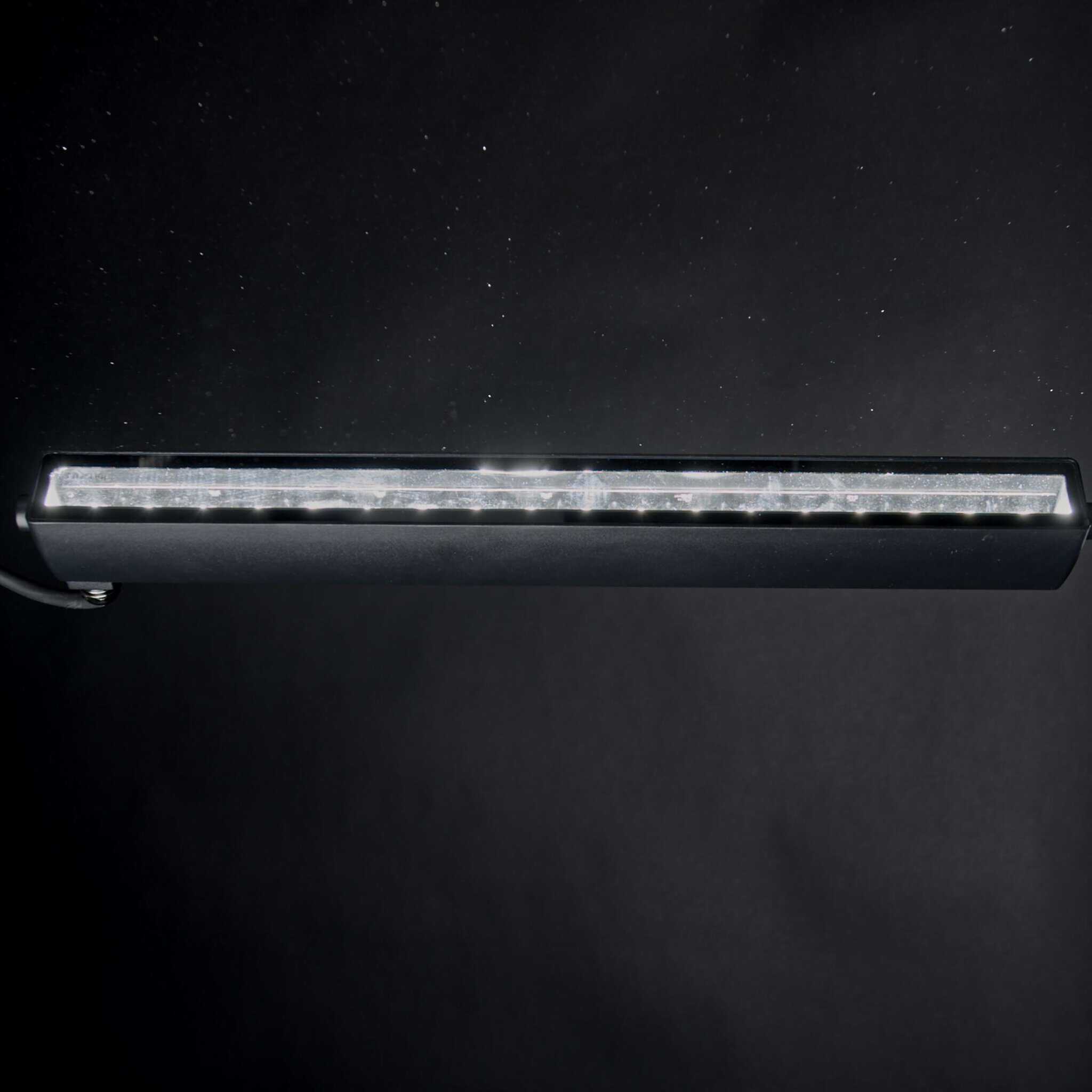

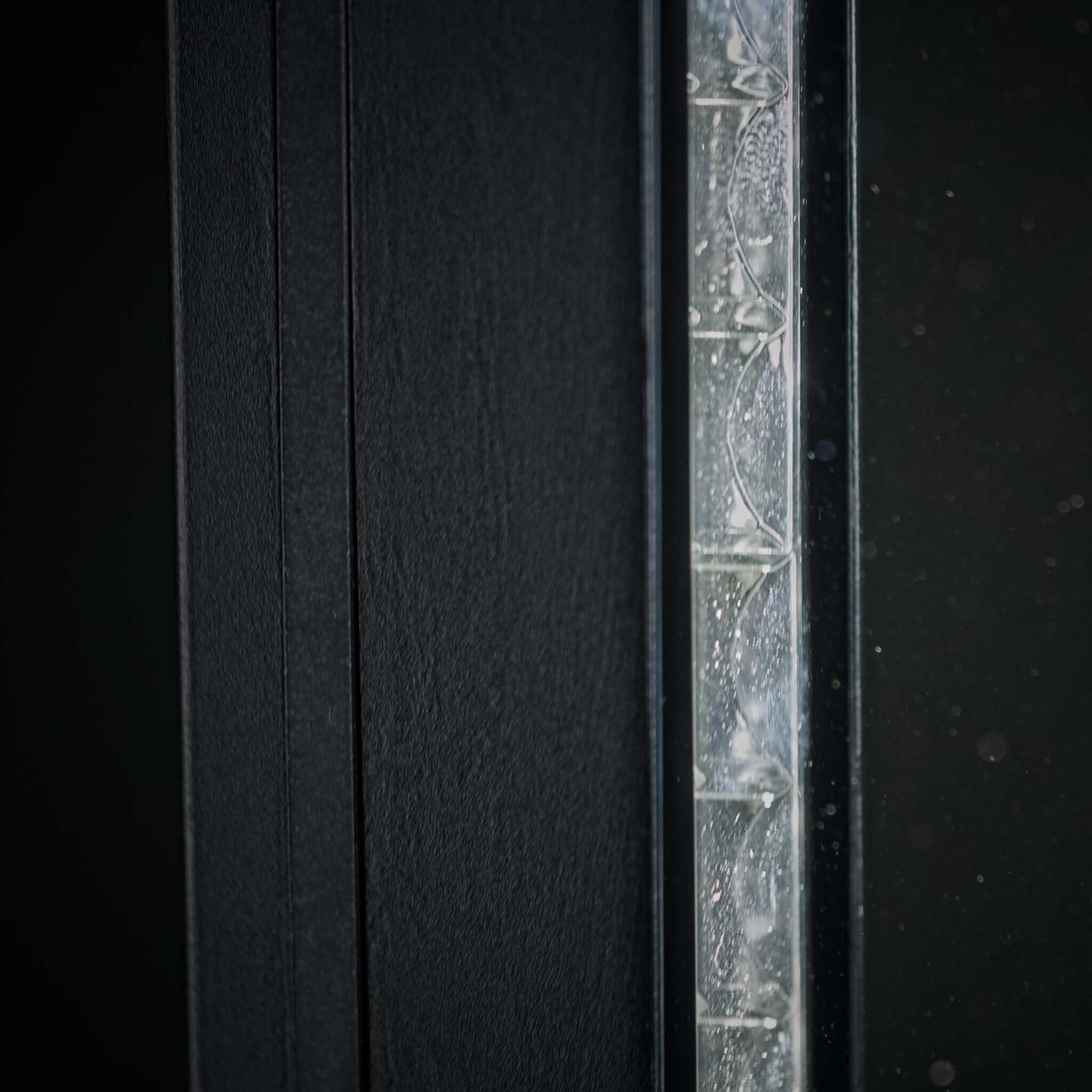

Twilight 300W in brief

• Power: 300 W, measured draw 284 W
• Output: 18,140 lm
• Reach: 1 lux at 794 m, 1 lux at 430 m measured to ECE R112
• Colour temperature: 5000 K
• Size: 508 × 45 × 65 mm
• Operating voltage: 9-32 V
• Ingress protection: IP69K
• Connector: DTP-4
• E-approved to ECE R112, R10, R148 and R149

CAN bus with XBB

The XBB OBD-II dongle plugs into the OBD port and reads the high beam signal from the car. It switches the PowerUnit relay wirelessly, so the bar follows your high beam without cutting into the headlight wiring and without warning lights on the dash.

In the box

• Twilight 300W LED bar

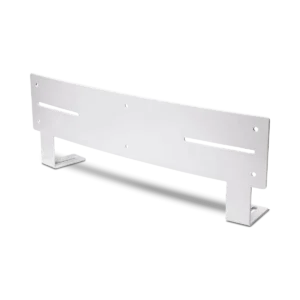

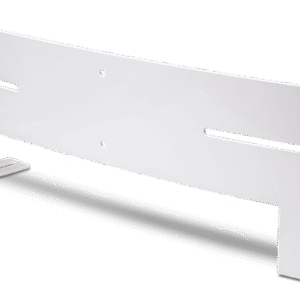

• Tesla flush-mount bracket, white
• Relay wiring kit DTP-4 for one light, 12 V with 80 A relay
• XBB OBD-II dongle with PowerUnit
• XBB PowerUnit wiring kit with DT connector
• Tesla OBD2 adapter

The exact parts are listed at the top of this page.
