What Vehicles Is This Package Compatible With?
This package is compatible with the Tesla Model 3 Highland, 2024 model year and newer. The Highland features a new front end and a different diagnostic port than previous Model 3s, which is why the mount and wiring are specifically chosen for this vehicle. If you are unsure which version you have, you may enter your license plate number in the vehicle selector.
How Far Does the Twilight 300W Illuminate?
The Twilight 300W illuminates 1 lux at 794 meters with 18,140 lumens. If you frequently drive on unlit country roads, you will have ample time to spot wildlife and stationary vehicles. Learn more about the entire Luxtar Twilight series.
Why Are XBB and OBD2 Adapter Included?
The XBB and OBD2 adapter allow you to connect the light bar without triggering error codes in the vehicle. The Model 3 electronically monitors its light sources, and the XBB reads the high beam signal directly via the diagnostic port. The Highland has a different diagnostic connector than older Model 3s, and the adapter allows you to connect the dongle without any modifications.
How Is the Light Bar Mounted?
You mount the light bar on the black Twilight bracket beneath the license plate. The Master & Slave relay wiring harness with an 80A relay powers the light bar from the vehicle’s 12-volt system. If you prefer professional installation, Mounted and Ready is available at a fixed price.
What Is Included in the Package?
The package contains everything you need for a complete installation on the Model 3 Highland:
- Luxtar Twilight 300W LED Light Bar
- Luxtar Twilight LED Light Bar Mount, Black
- Luxtar Master & Slave X1 12V 80A Relay Wiring Harness
- XBB OBD-II Dongle + PowerUnit
- Tesla OBD2 Adapter for Model 3 Highland

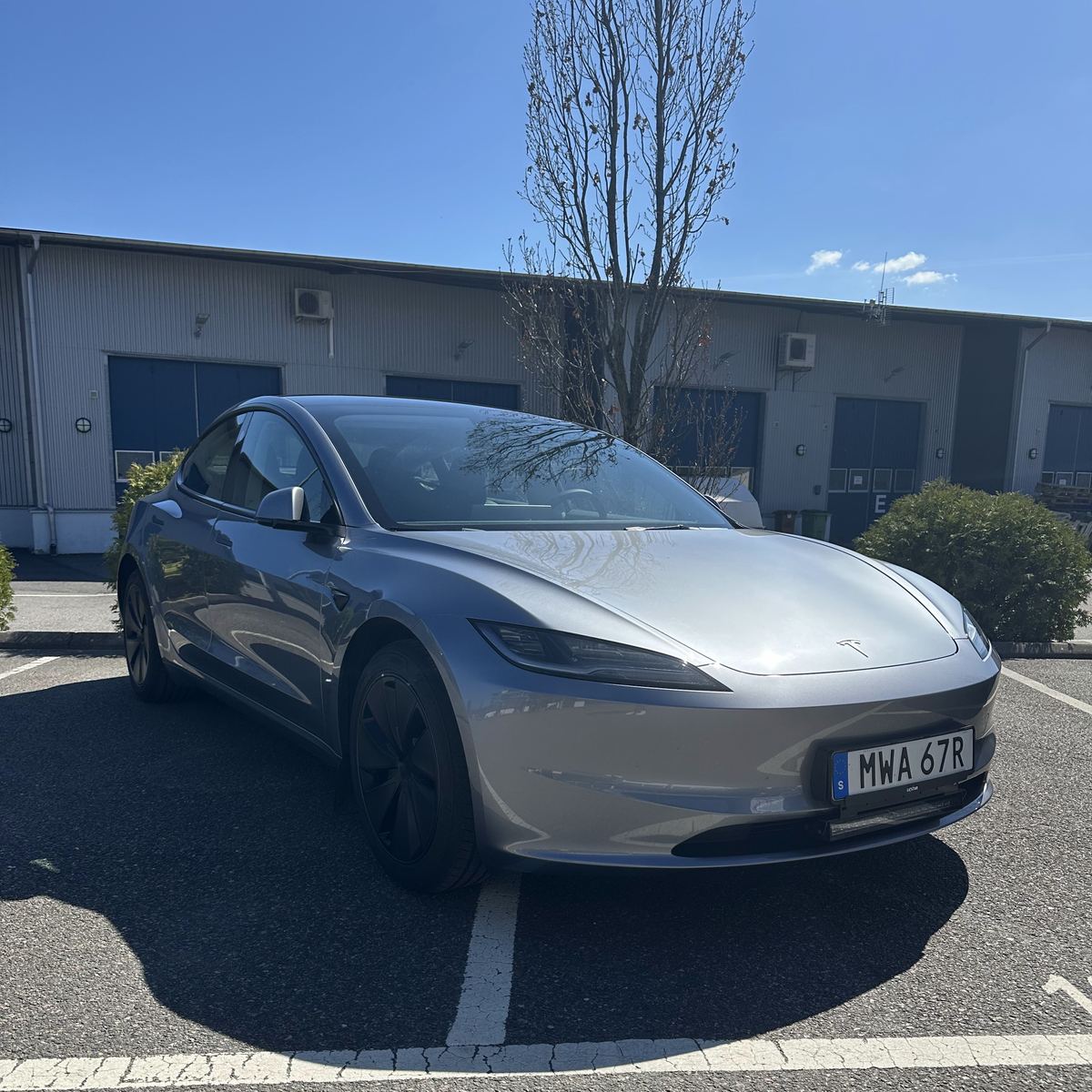

How Do I Know If My Model 3 Is a Highland?
Your Model 3 is a Highland if it was delivered in 2024 or later. You can identify it by its narrower headlights, new front end, and a rear seat display. The easiest way is to search by your license plate number in the vehicle selector.
Is the Package Compatible with Older Model 3s?
No, the package is not compatible with Model 3s from 2019 to 2023. Those vehicles have a different front end and diagnostic port.
Are the Autopilot Cameras Affected?
No, the cameras are not affected. They are located inside the windshield and on the sides, while the light bar is positioned on the front end below the license plate.
Technical Specification
| Property | Value |
|---|---|
| Power | 300 W (actual consumption 284 W) |
| Luminous Flux | 18,140 lumens |
| Range | 1 lux at 794 m (R112 standard: 1 lux at 430 m) |
| Color Temperature | 5000 K |
| Dimensions (light bar) | 508 x 45 x 65 mm |
| Voltage | 9-32 V |
| Current Consumption | 20.7 A at 13.7 V |
| IP Rating | IP69K |
| Beam Pattern | Driving |
| Connector | DTP-4 |
| Approvals | E-approved, R112, R10, R148, R149 |
| Mount | Luxtar Twilight LED Light Bar Mount, Black (RF) |
| Wiring | Luxtar Master & Slave X1 12V 80A Relay Wiring Harness, XBB OBD-II Dongle/PowerUnit, and Tesla OBD2 Adapter for Highland |
| Compatible With | Tesla Model 3 Highland, 2024 model year and newer |
