Twilight CAN bus LED Bar Kit

The Twilight LED Bar Kit, CAN bus, is the complete package for modern cars that monitor their lights electronically. It pairs the Twilight 300W with the XBB system, so the bar follows the high beam without error messages or interference with the car’s electronics.

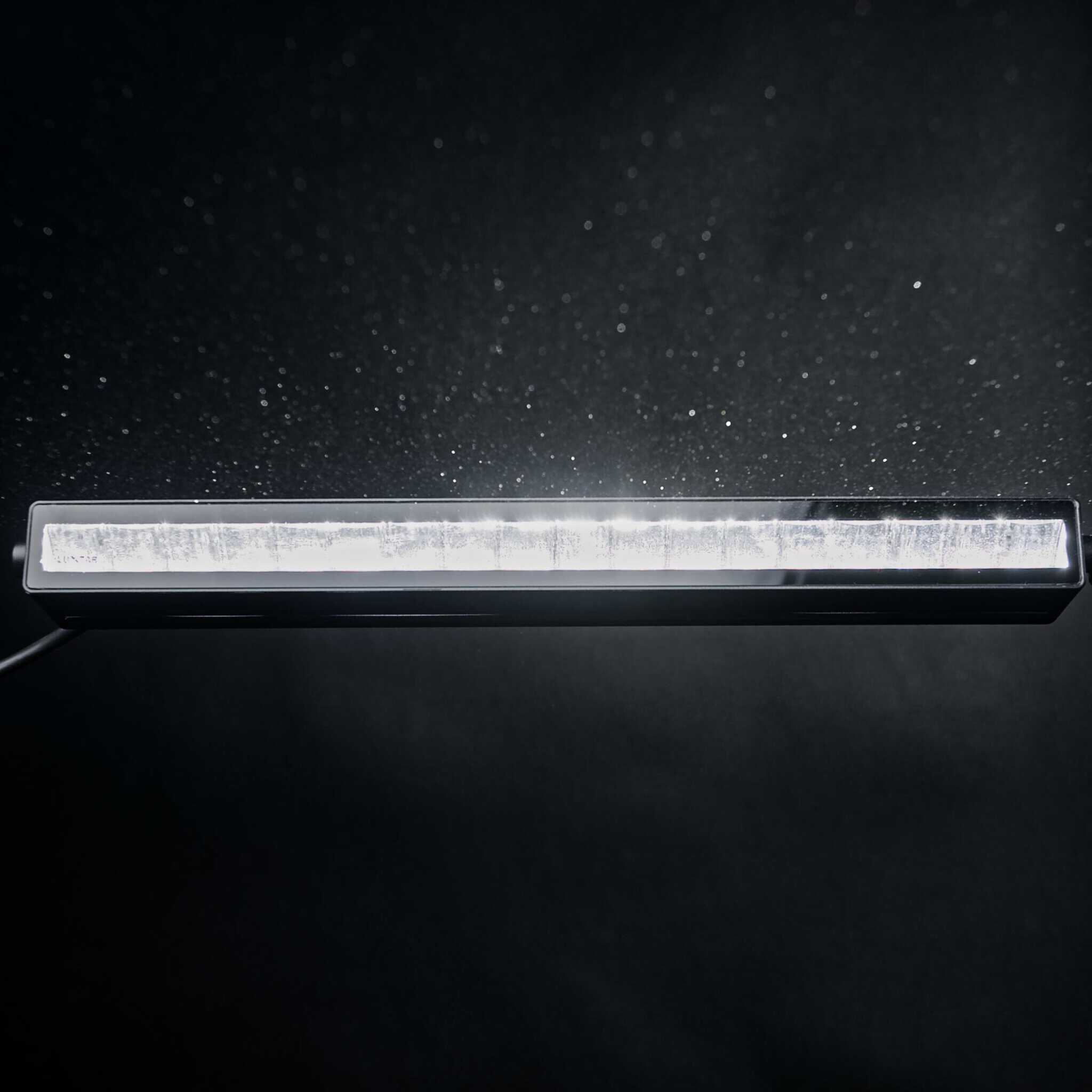

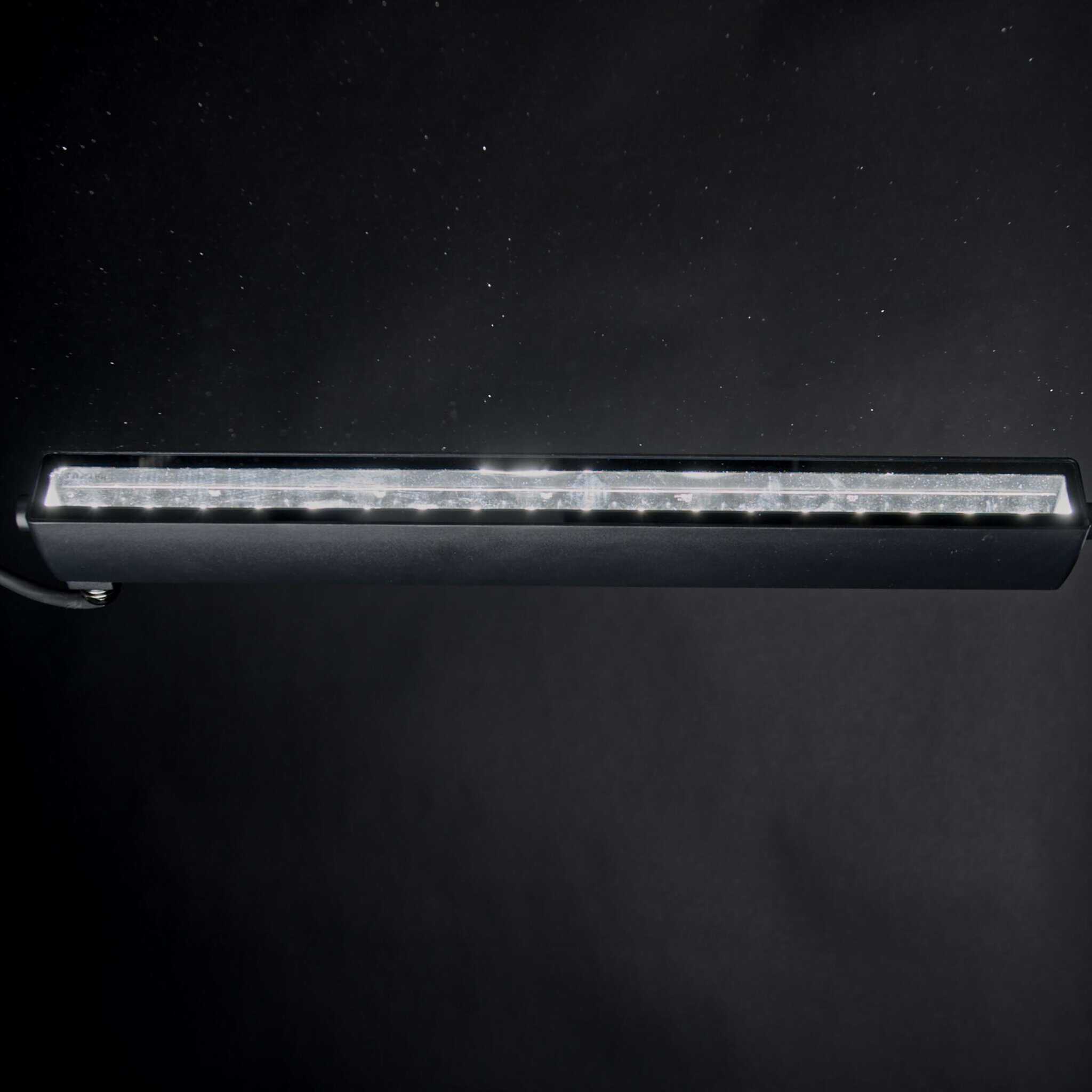

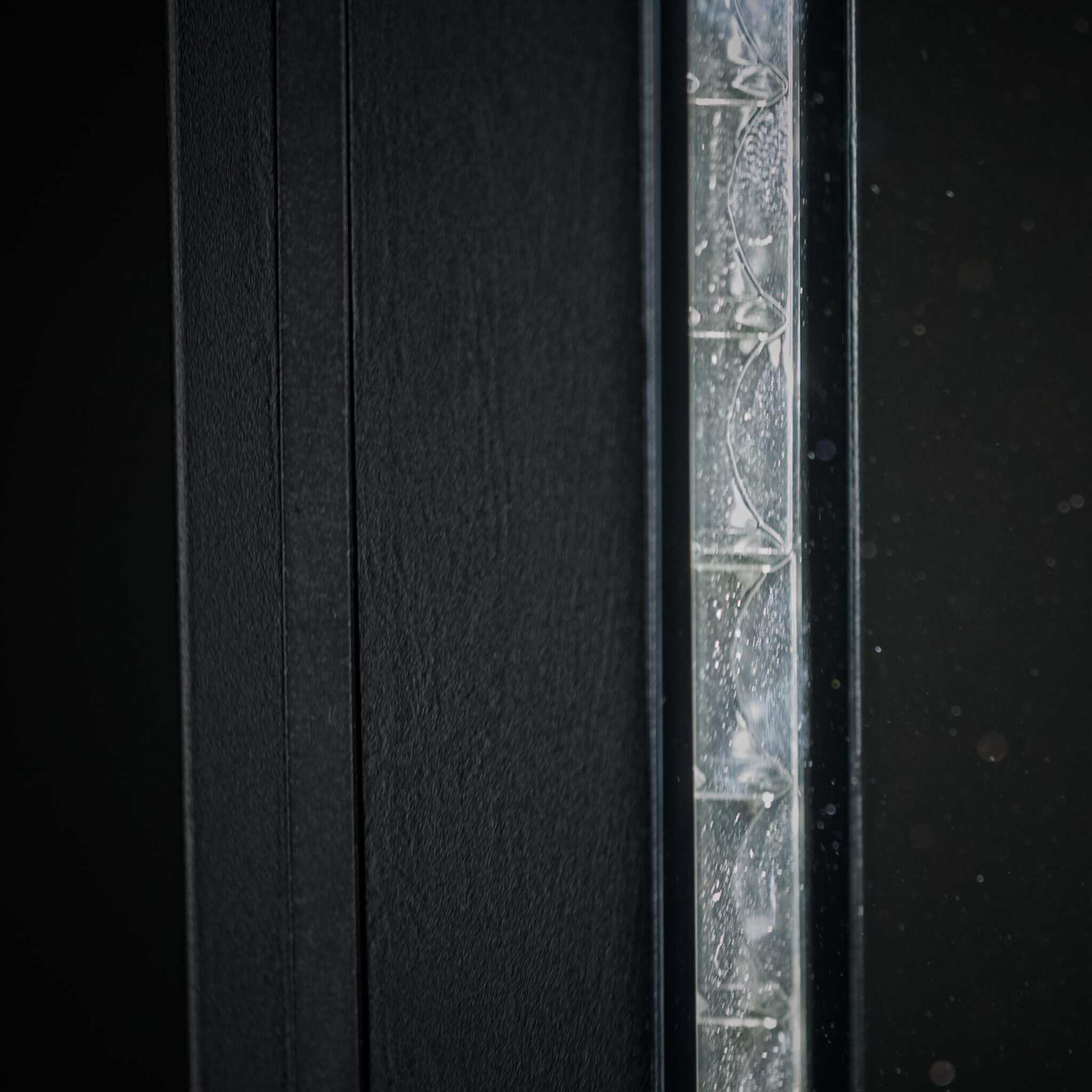

Twilight 300W in brief

• Power: 300 W, measured draw 284 W
• Output: 18,140 lm
• Reach: 1 lux at 794 m, 1 lux at 430 m measured to ECE R112
• Colour temperature: 5000 K
• Size: 508 × 45 × 65 mm
• Operating voltage: 9-32 V
• Ingress protection: IP69K
• Connector: DTP-4
• E-approved to ECE R112, R10, R148 and R149

CAN bus with XBB

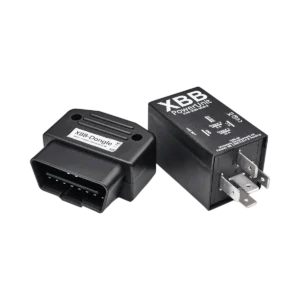

The XBB OBD-II dongle plugs into the OBD port and reads the high beam signal from the car. It switches the PowerUnit relay wirelessly, so the bar follows your high beam without cutting into the headlight wiring and without warning lights on the dash.

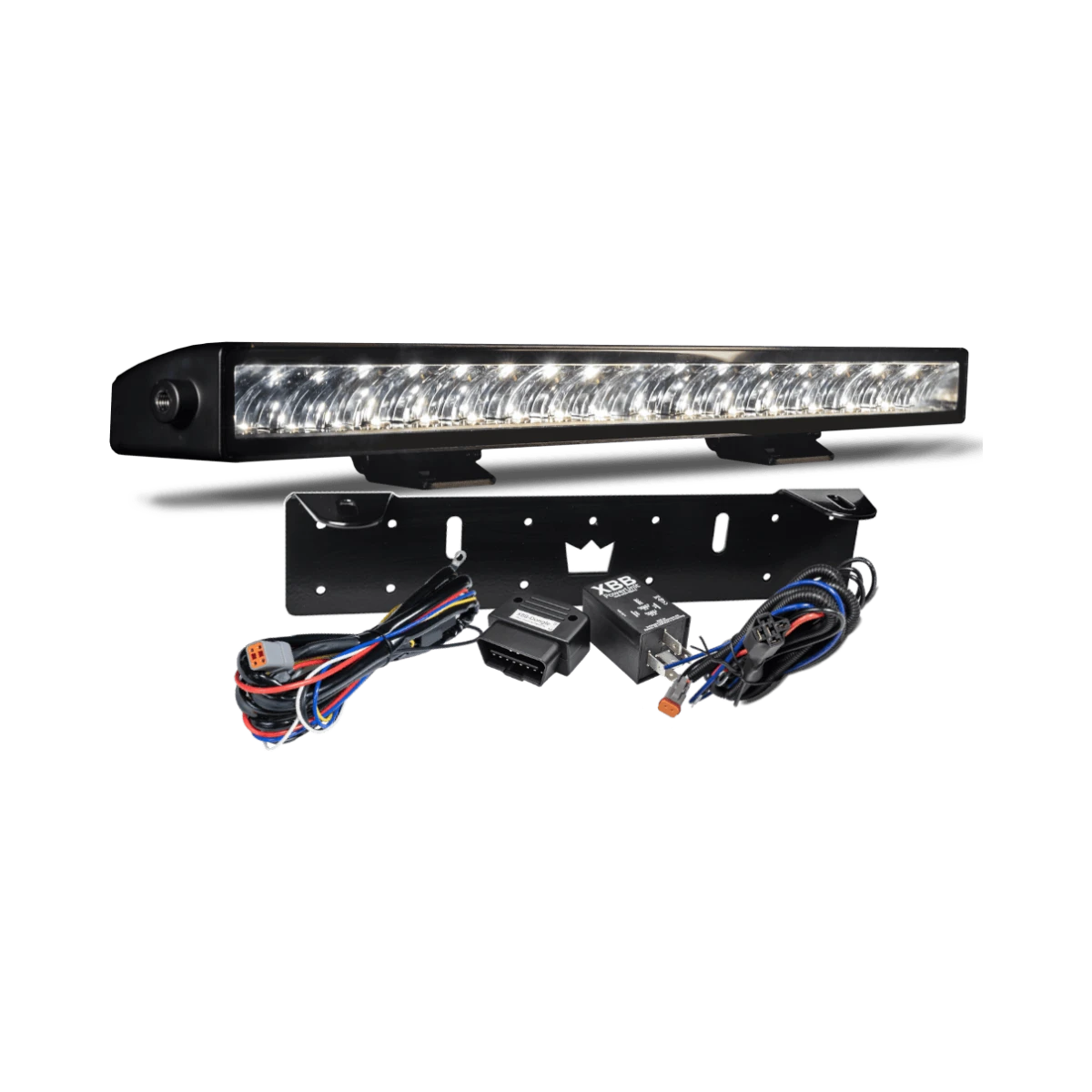

In the box

• Twilight 300W LED bar
• Light bracket, black, 225 mm between the mounting holes

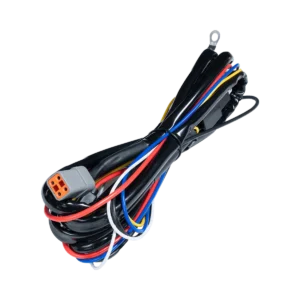

• Relay wiring kit DTP-4 for one light, 12 V with 80 A relay
• XBB OBD-II dongle with PowerUnit

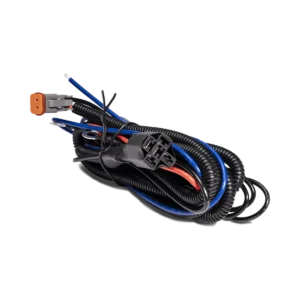

• XBB PowerUnit wiring kit with DT connector
