X48 Black Edition

At 130 cm, the X48 Black Edition is one of the longest bars in the Luxtar X series, built for trucks, pickups and work vehicles where you need serious reach and a wide carpet of light in front of the vehicle.

Built for the long haul

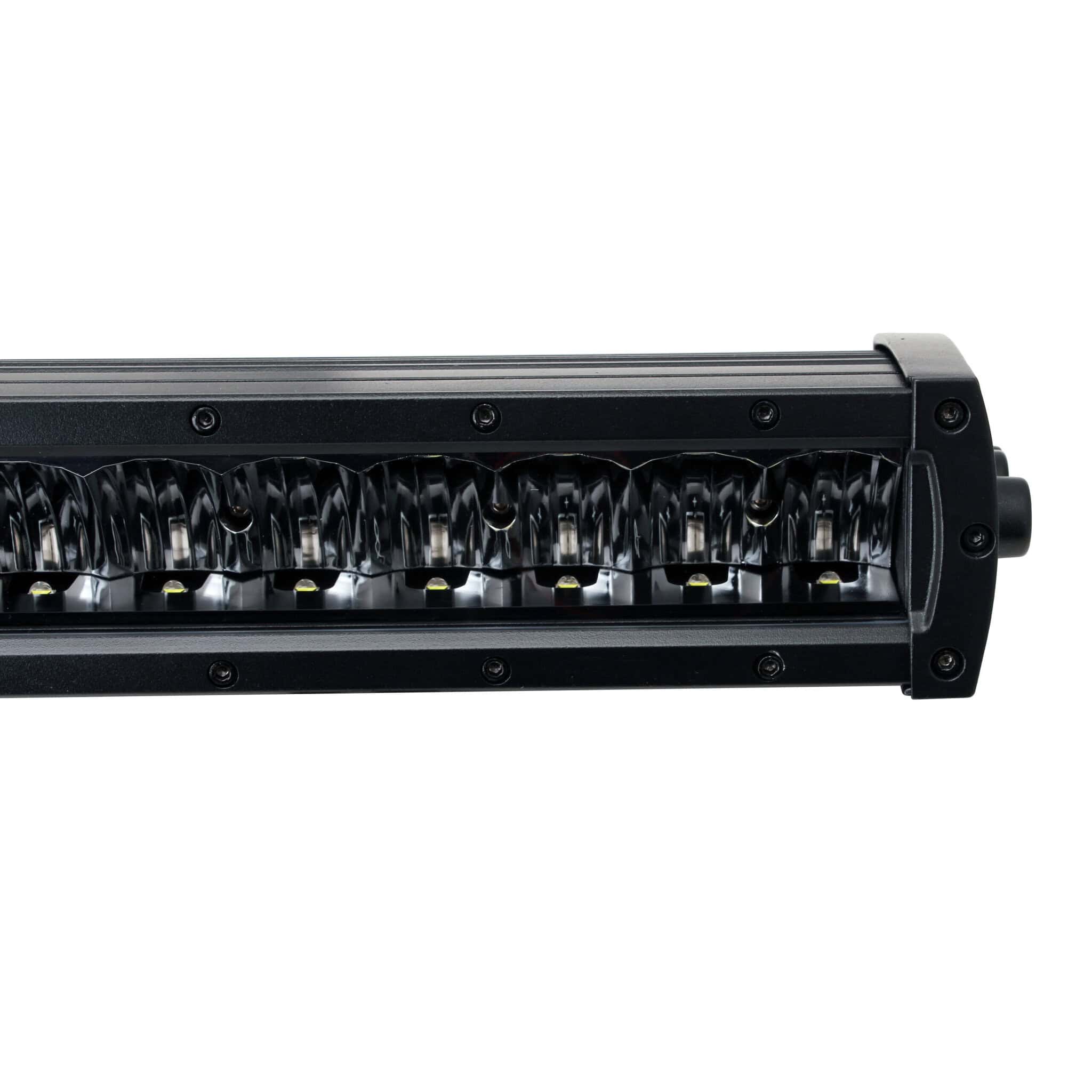

The X series uses side-mounted LEDs fired into a deep reflector, a layout that gives a clean beam and keeps the face of the bar dark and discreet when switched off. The Black Edition housing is designed to blend into the vehicle rather than stand out.

Key figures

• Length: 130 cm
• Operating voltage: 10-32 V
• Measured output: 24,060 lm at 350.4 W
• Rated output: 28,250 lm, 480 W

The rated figures are the theoretical LED values most brands quote. We also publish the measured output, so you can compare like for like.

Spot or Driving beam

Spot puts the light into a narrow, long-reaching beam. Choose it if reach matters most, for example for higher speeds on open roads.

Driving spreads the light wider at slightly shorter range, so you see more of the verges and the road edges. Choose it for winding roads and wildlife-dense areas.

Suited for

Trucks, commercial vehicles and pickups that need a lot of light over a wide area.

This bar is not E-marked, as its output is well above the limit for approved driving lights. Check the rules where you drive before using it on public roads.
