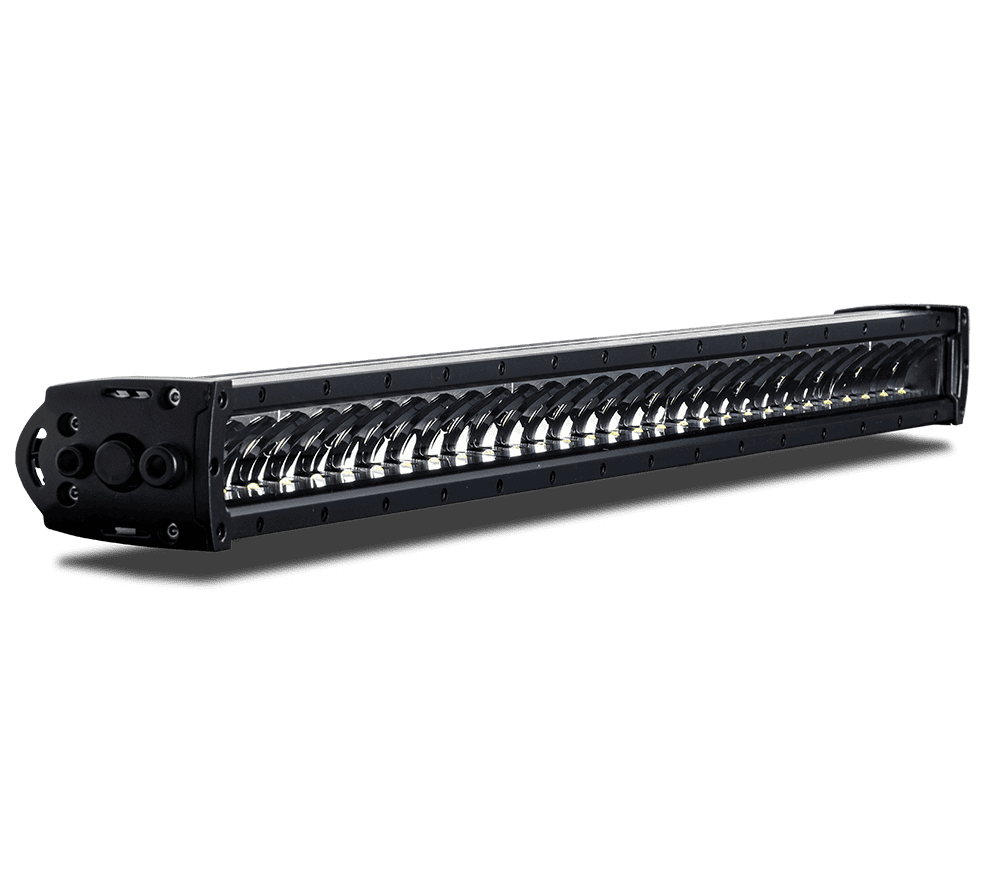

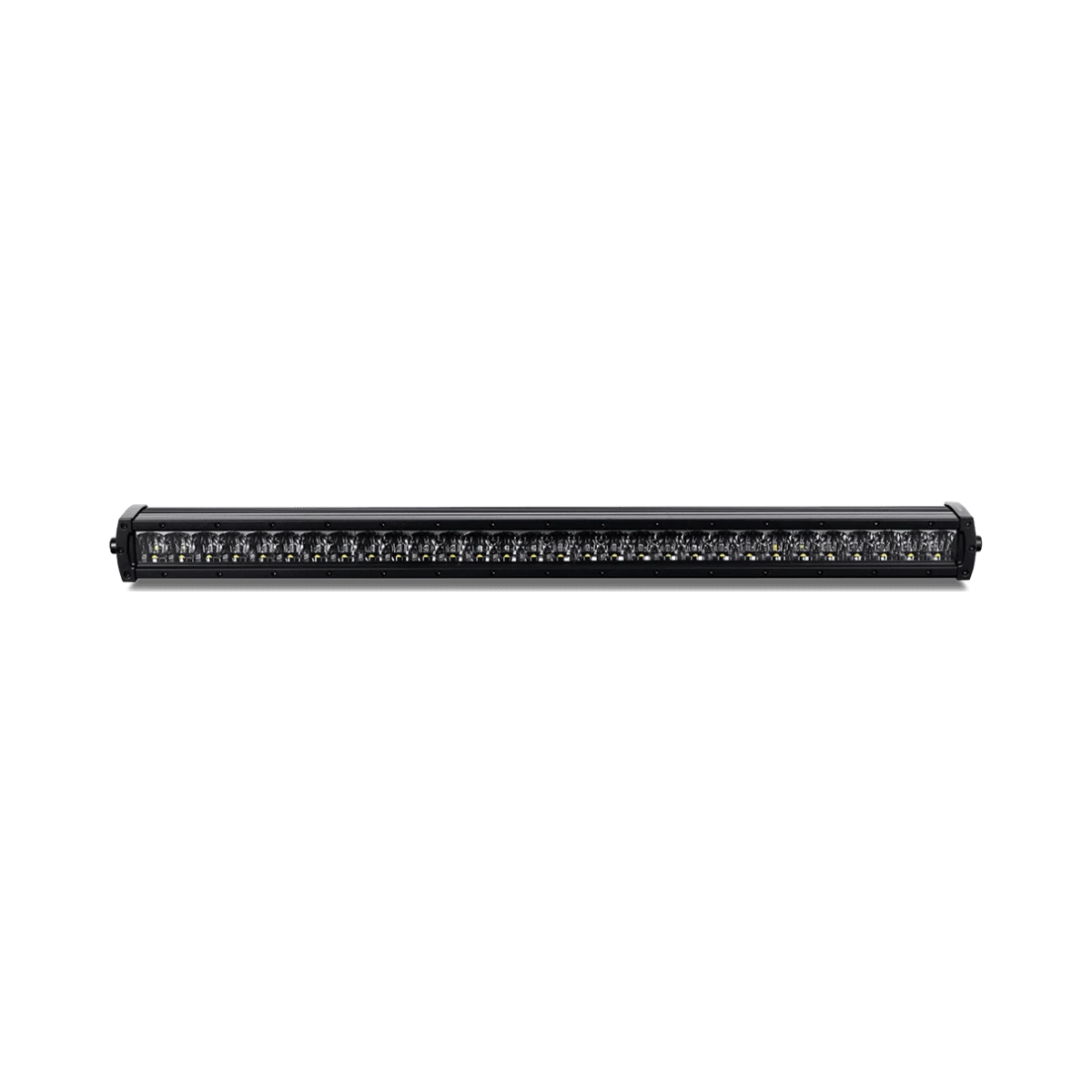

X30 Black Edition

The X30 Black Edition gives you 15,031 measured lumen from an 83 cm bar, more than fifteen times the light of a 55 W halogen high beam bulb. It is available with Spot or Driving reflectors.

Built for the long haul

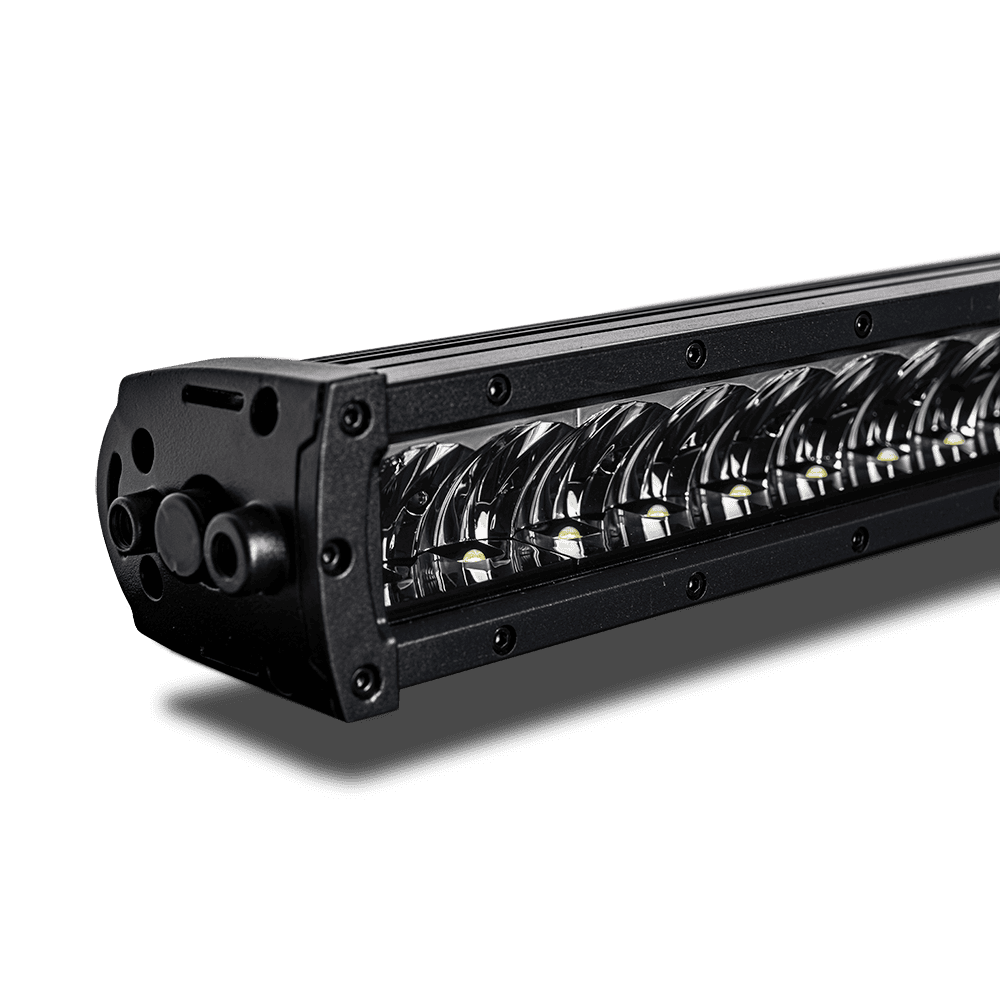

The X series uses side-mounted LEDs fired into a deep reflector, a layout that gives a clean beam and keeps the face of the bar dark and discreet when switched off. The Black Edition housing is designed to blend into the vehicle rather than stand out.

Key figures

• Length: 83 cm
• Operating voltage: 10-32 V
• Measured output: 15,031 lm at 218.4 W
• Rated output: 30,000 lm, 300 W

The rated figures are the theoretical LED values most brands quote. We also publish the measured output, so you can compare like for like.

How it compares

• Halogen 55 W, about 1,000 lm: the X30 gives over 15 times more light
• Xenon 35 W, about 3,200 lm: around 4 times more light
• Xenon 50 W, about 4,000 lm: around 3 times more light

Spot or Driving beam

Spot puts the light into a narrow, long-reaching beam. Choose it if reach matters most, for example for higher speeds on open roads.

Driving spreads the light wider at slightly shorter range, so you see more of the verges and the road edges. Choose it for winding roads and wildlife-dense areas.

Suited for

Trucks, cars, vans and pickups.

This bar is not E-marked, as its output is well above the limit for approved driving lights. Check the rules where you drive before using it on public roads.
