X12 Black Edition

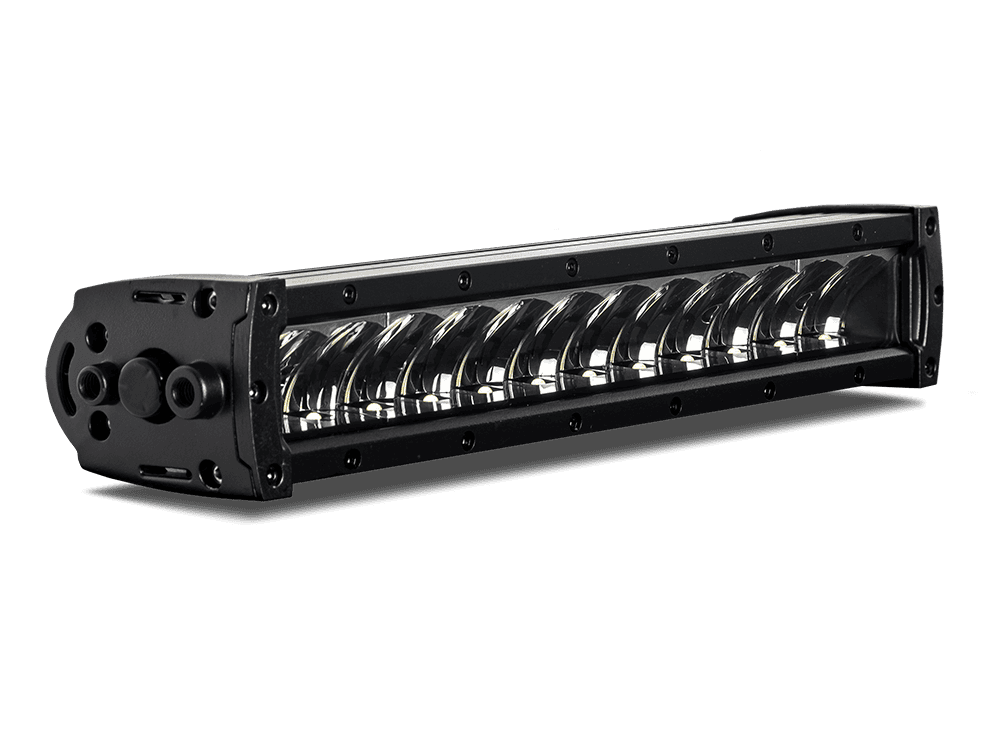

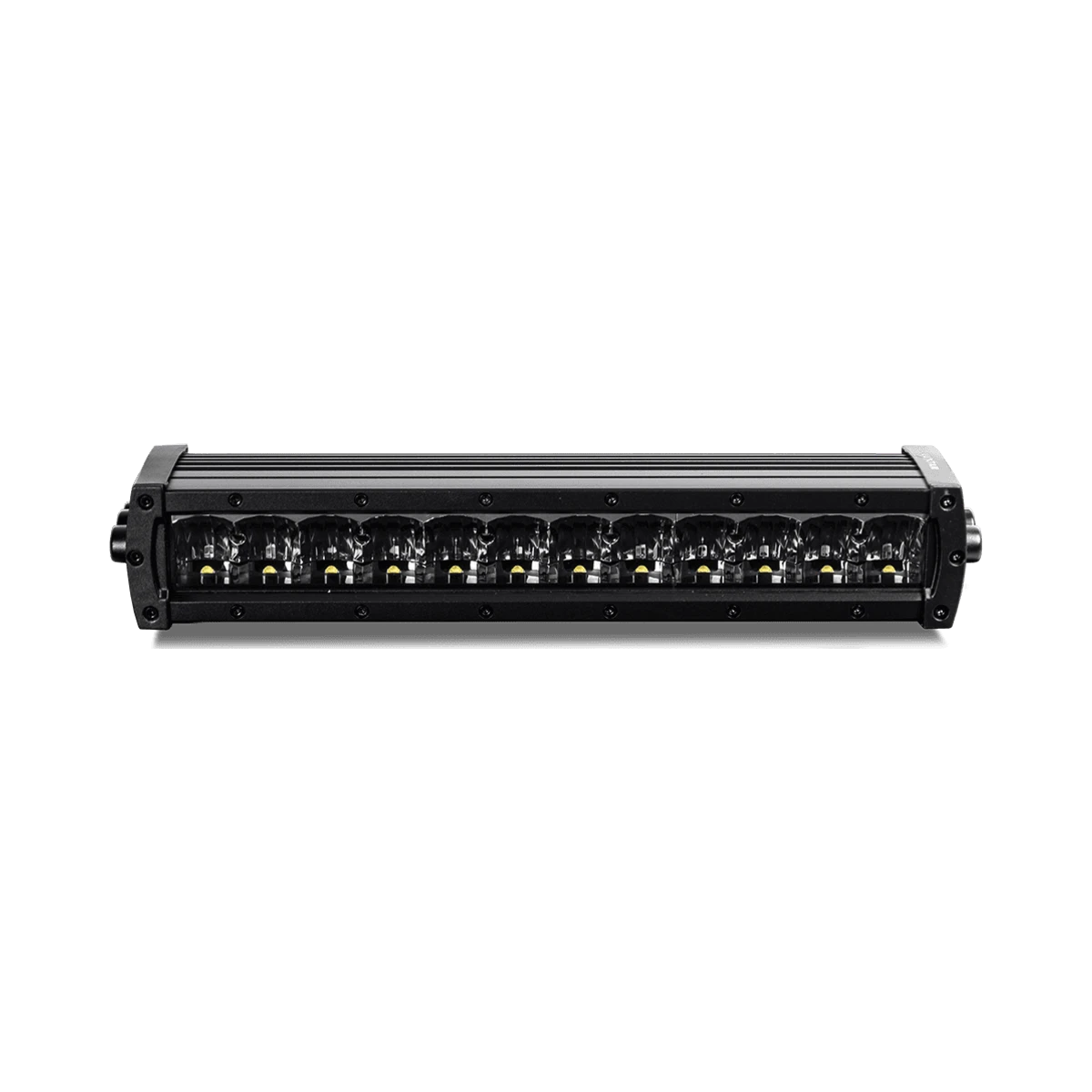

The X12 Black Edition is a 36 cm LED bar with 6,013 measured lumen, about the light of six halogen high beam bulbs. Its short length makes it easy to fit in a grille or a bumper opening.

Built for the long haul

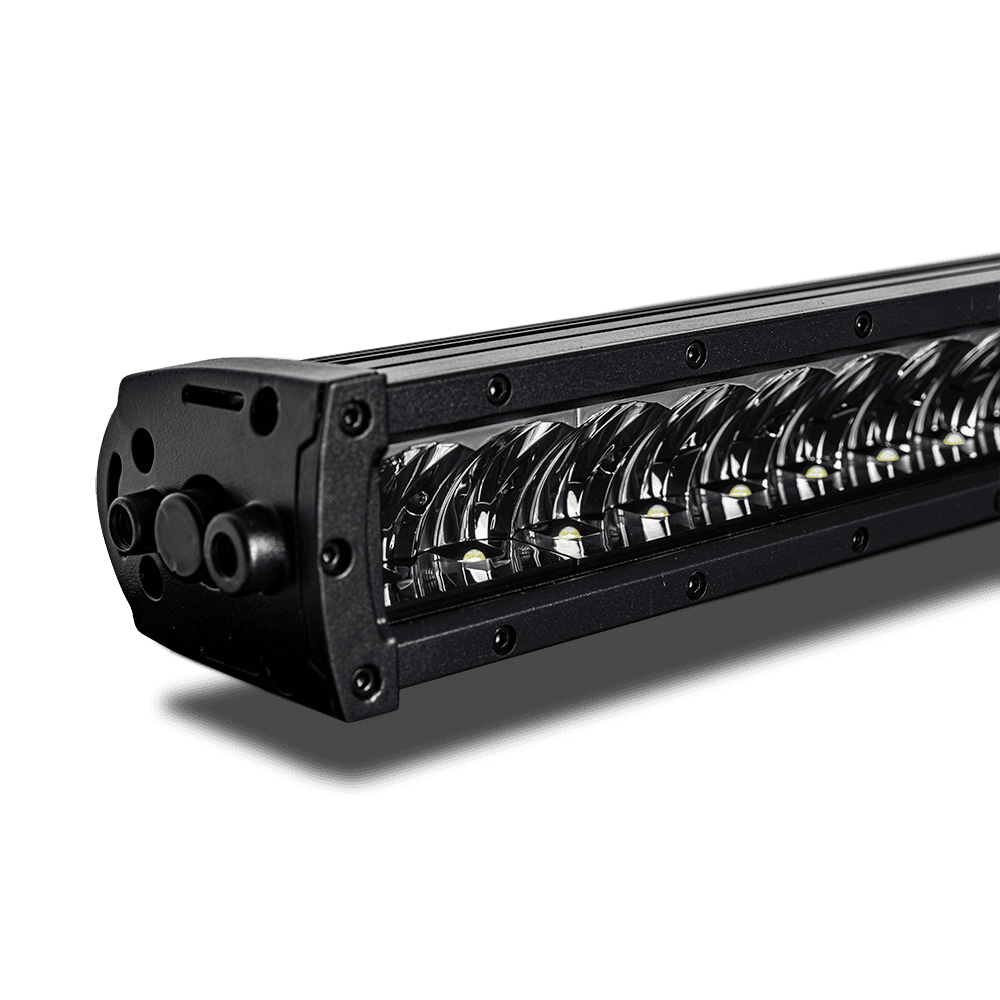

The X series uses side-mounted LEDs fired into a deep reflector, a layout that gives a clean beam and keeps the face of the bar dark and discreet when switched off. The Black Edition housing is designed to blend into the vehicle rather than stand out.

Key figures

• Length: 36 cm
• Operating voltage: 10-32 V
• Measured output: 6,013 lm at 87.6 W
• Rated output: 7,392 lm, 120 W

The rated figures are the theoretical LED values most brands quote. We also publish the measured output, so you can compare like for like.

Spot or Driving beam

Spot puts the light into a narrow, long-reaching beam. Choose it if reach matters most, for example for higher speeds on open roads.

Driving spreads the light wider at slightly shorter range, so you see more of the verges and the road edges. Choose it for winding roads and wildlife-dense areas.

Suited for

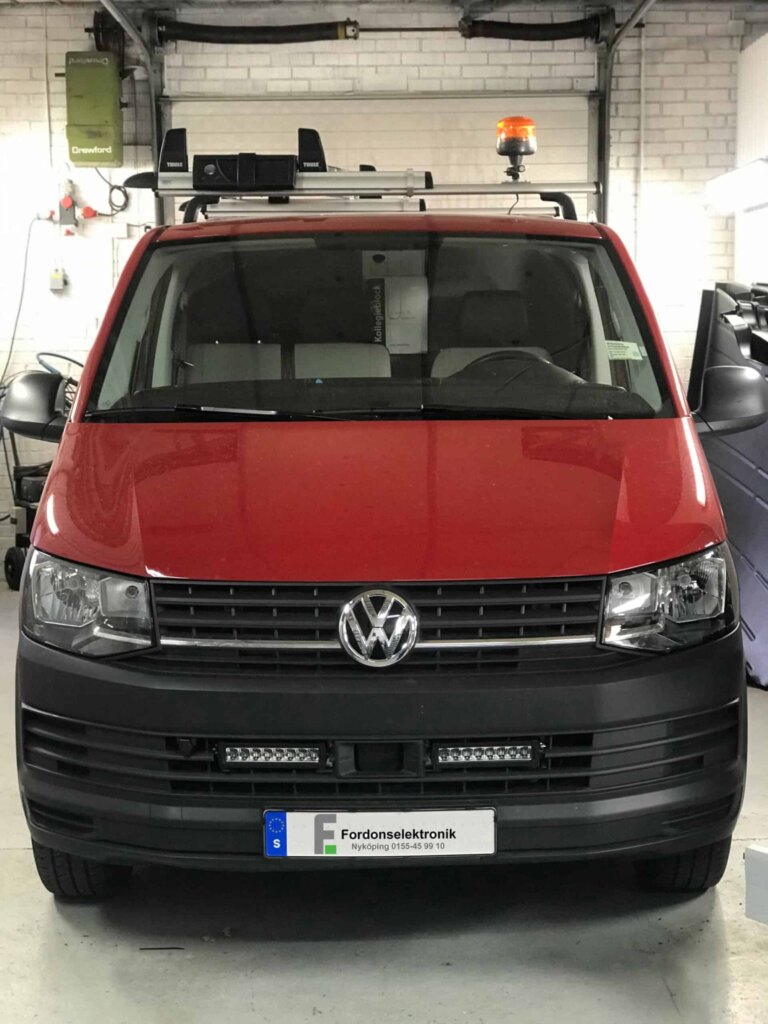

Cars, vans, commercial vehicles, trucks and pickups.

This bar is not E-marked, as its output is well above the limit for approved driving lights. Check the rules where you drive before using it on public roads.
