Twilight LED Bar Kit, Yellow CAN bus

The Twilight LED Bar Kit, Yellow, CAN bus, is the complete package for modern cars with CAN bus electronics. It pairs the Twilight 300W with the XBB system, so the bar follows the high beam without error messages or interference with the car’s electronics.

Twilight 300W in brief

• Power: 300 W
• Output: 18,140 lm
• Reach: 1 lux at 794 m
• Reach measured to ECE R112: 1 lux at 430 m
• E-approved to ECE R112 and R149

CAN bus with XBB

The XBB OBD-II dongle plugs into the OBD port and reads the high beam signal from the car. It switches the PowerUnit relay wirelessly, so the bar follows your high beam without cutting into the headlight wiring and without warning lights on the dash.

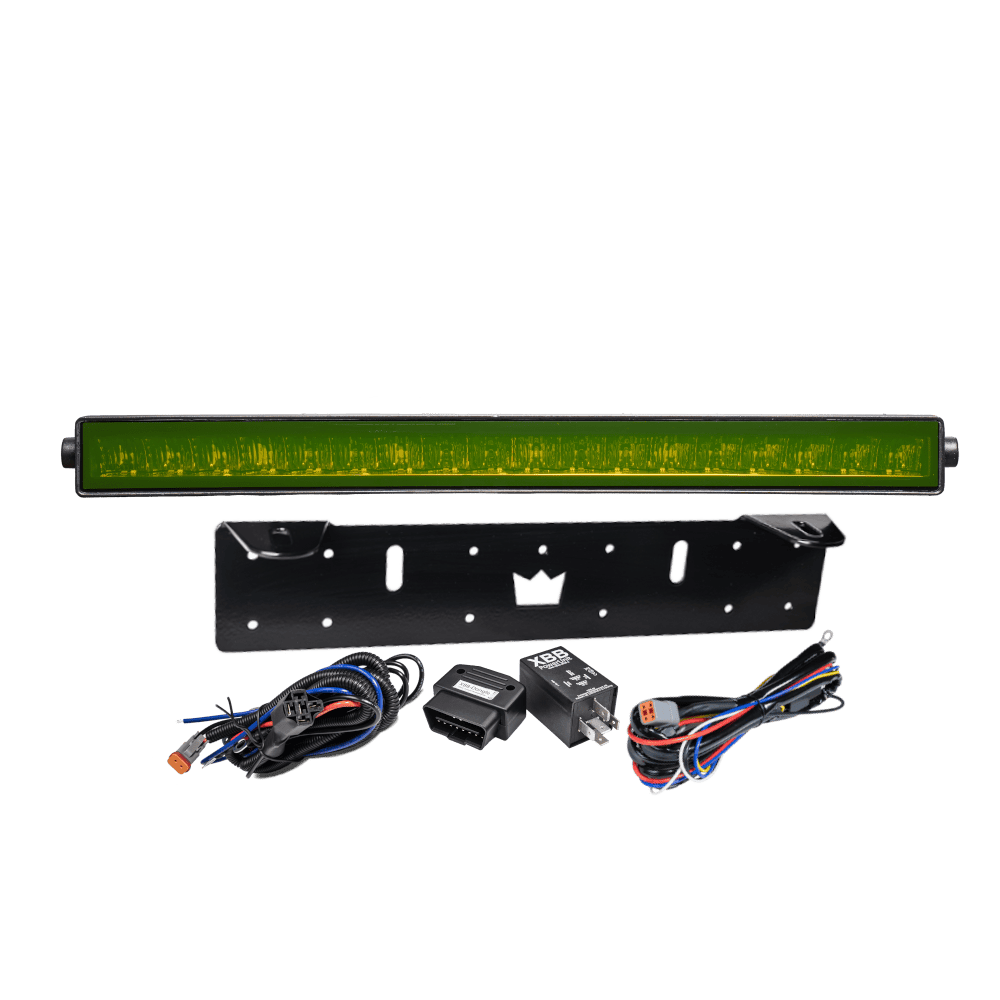

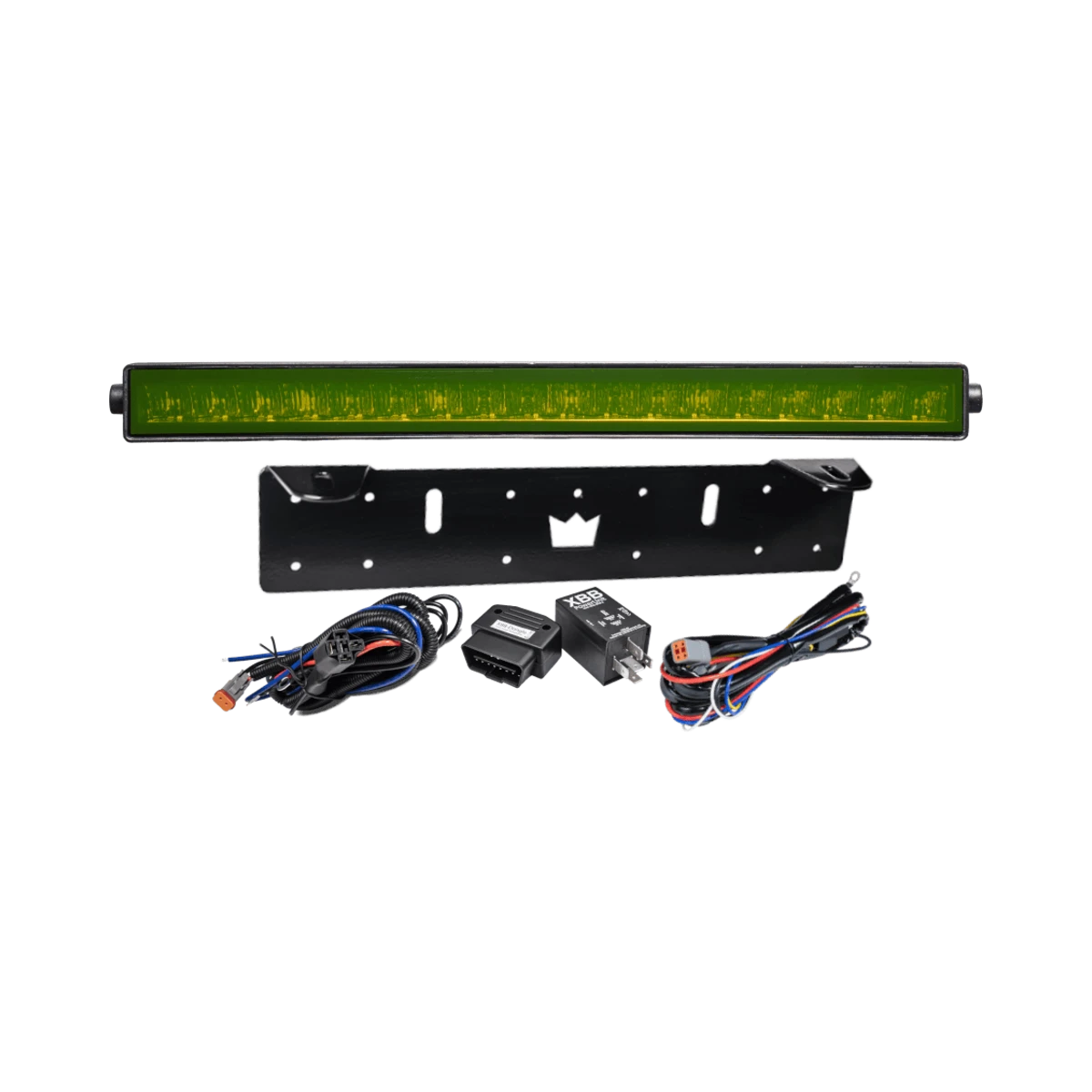

In the box

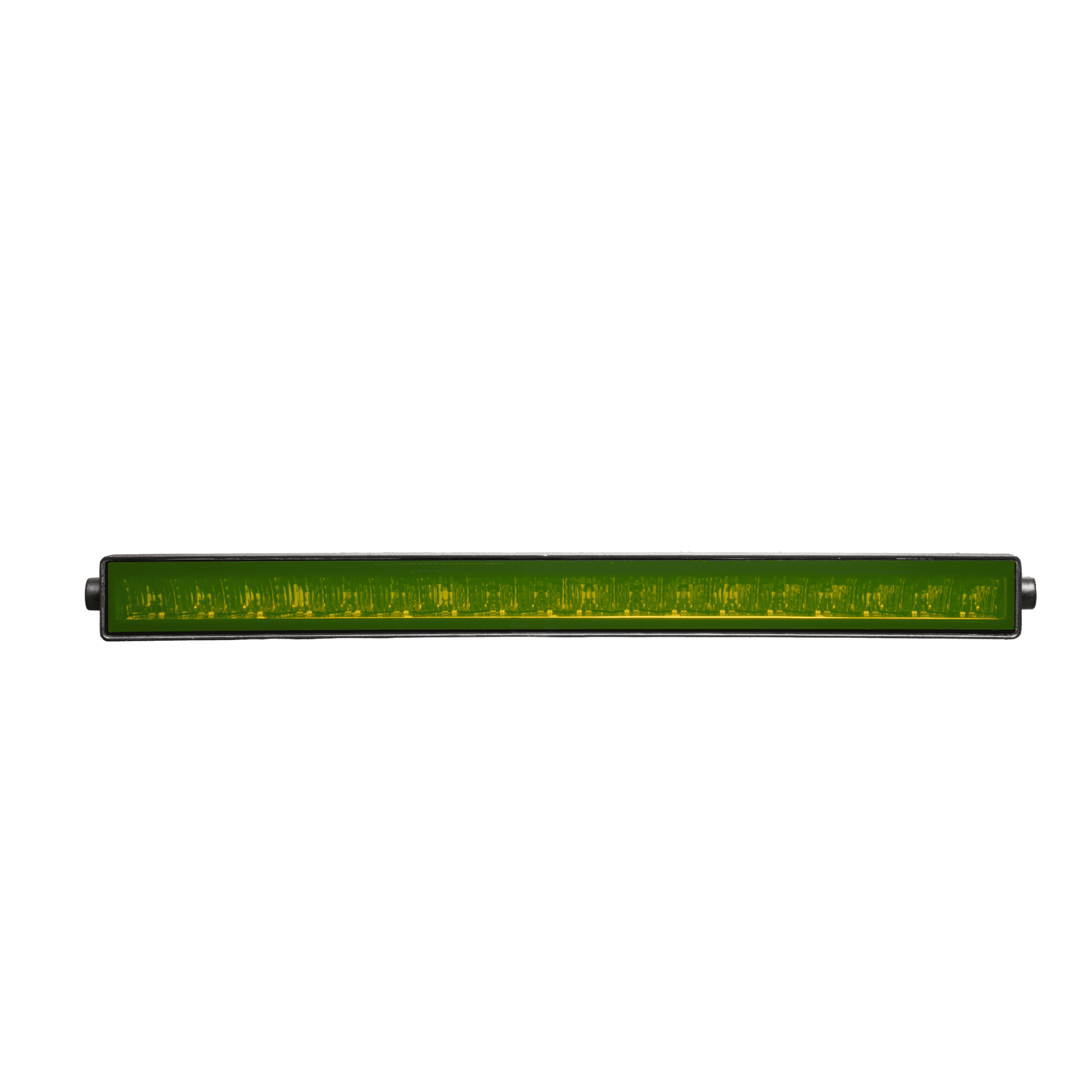

• Twilight 300W LED bar, yellow version

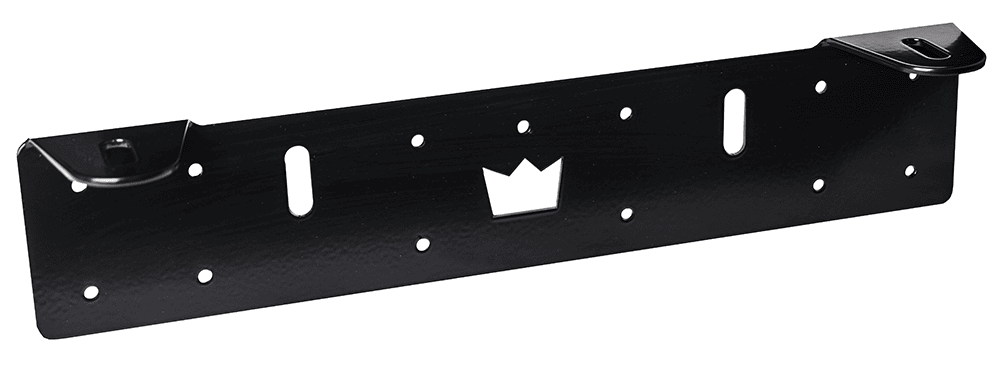

• Light bracket, black, 225 mm between the mounting holes

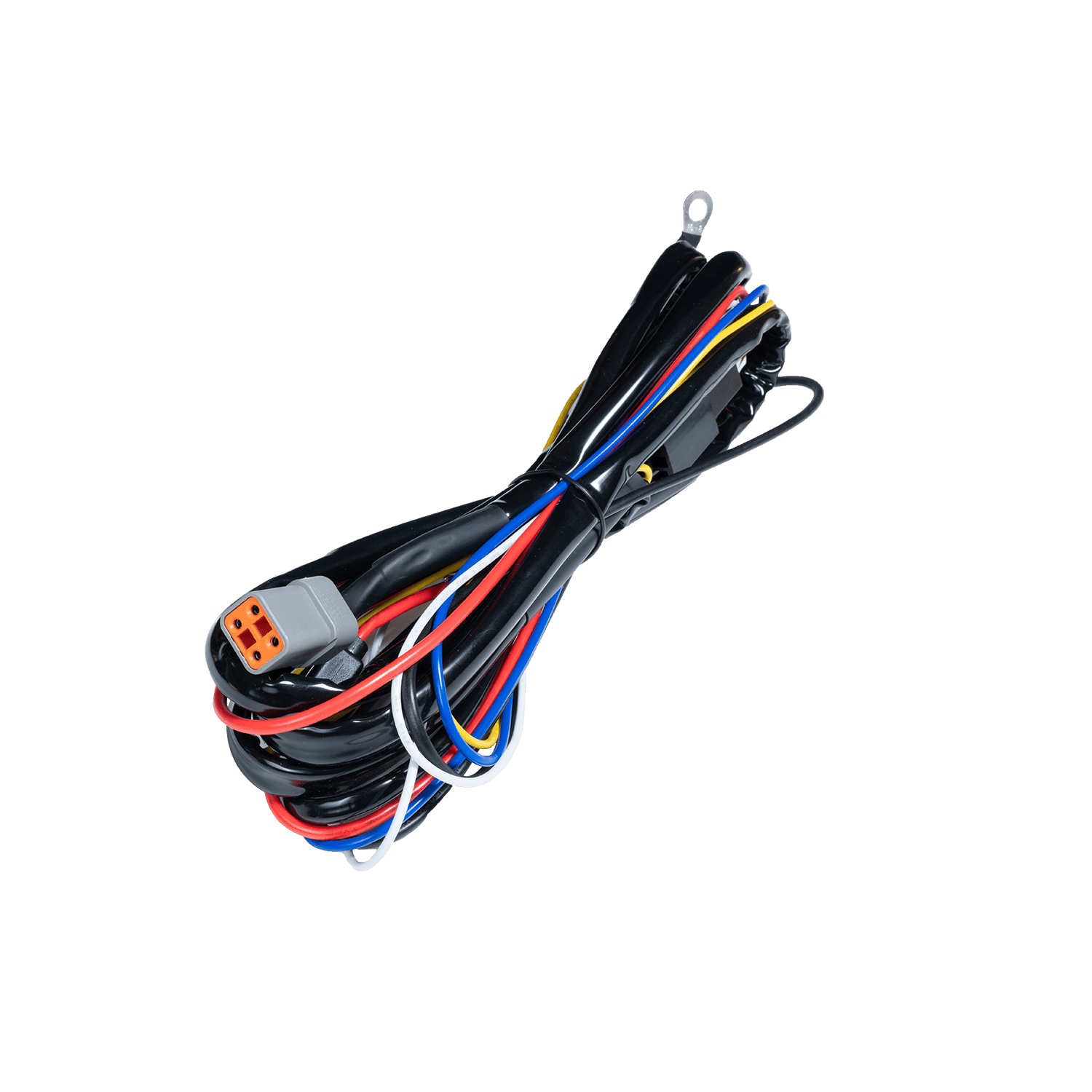

• Relay wiring kit DTP-4 for one light, 12 V with 80 A relay
• XBB OBD-II dongle with PowerUnit
• XBB PowerUnit wiring kit with DT connector
