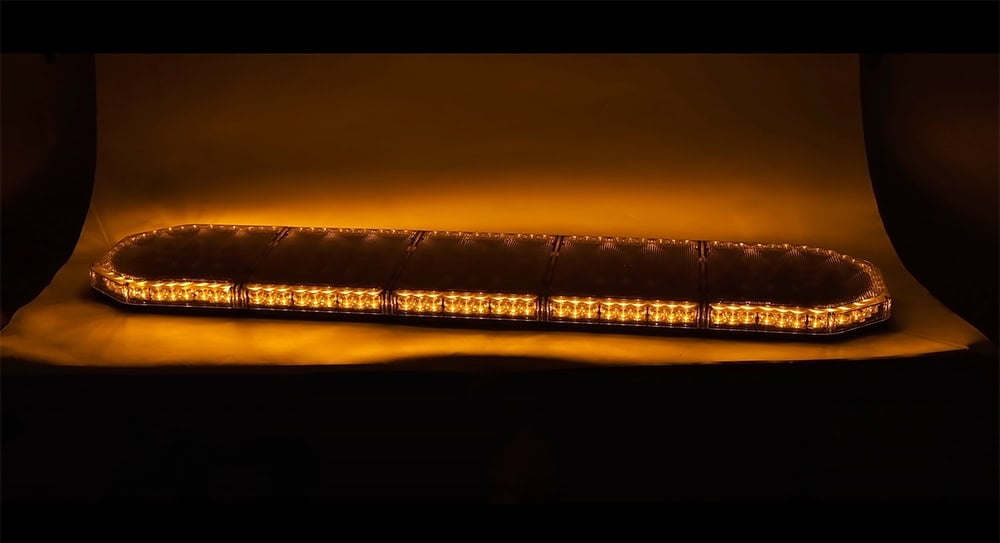

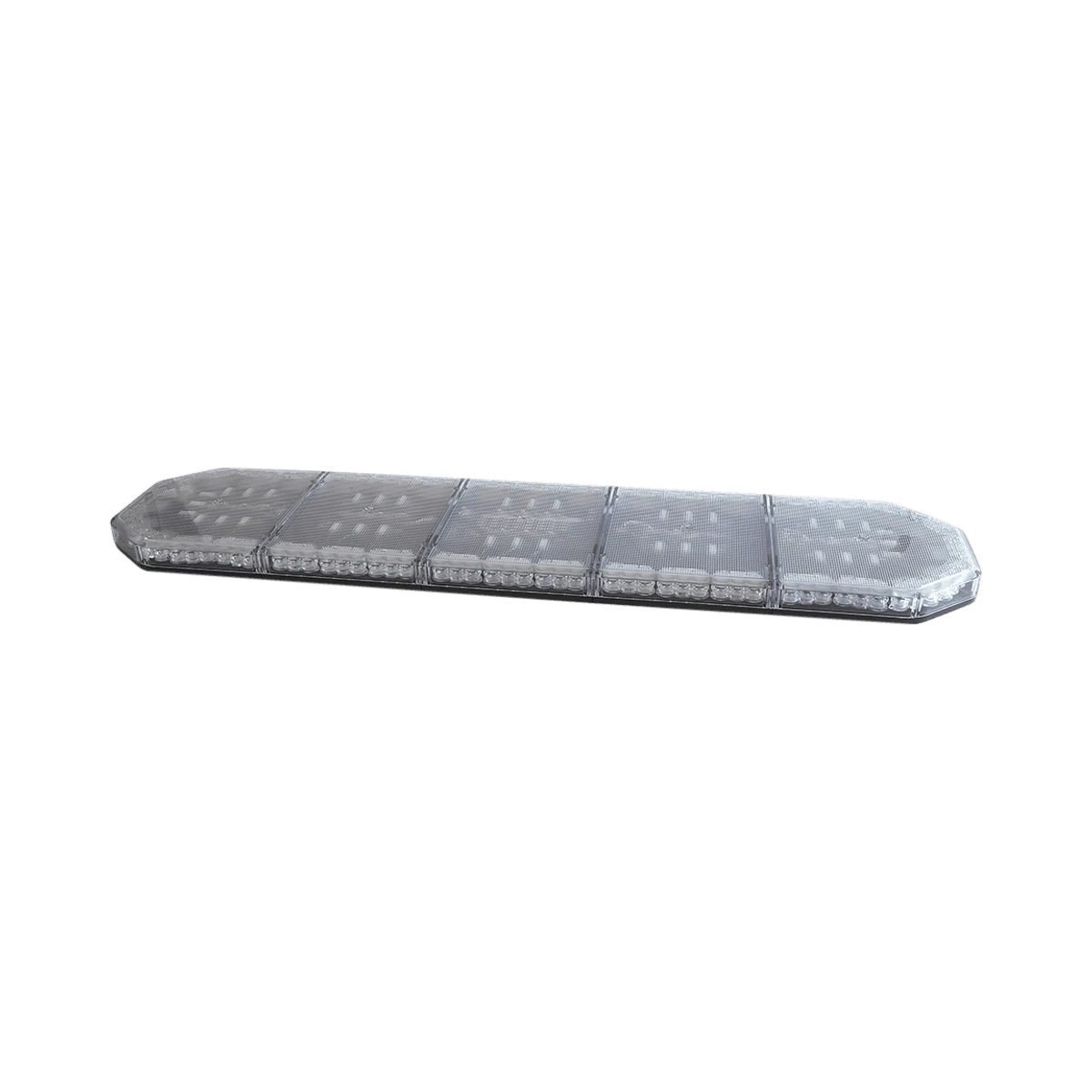

PS80 Warning Light Bar 1185 mm

The PS80 at 1,185 mm is the longer version of the low-profile amber light bar, approved to ECE R65 Class 1 and ECE R10. 108 LED modules of 1 W each give strong visibility in every direction.

Specifications

• 108 LEDs, 19 flash patterns
• Amber
• 10-30 V, 98.5 W
• Current: 8.2 A at 12 V, 3.9 A at 24 V
• IP67, −40 °C to +65 °C
• Polycarbonate, no corrosion risk when mounted on metal
• Size: 1,185 × 95 × 270 mm

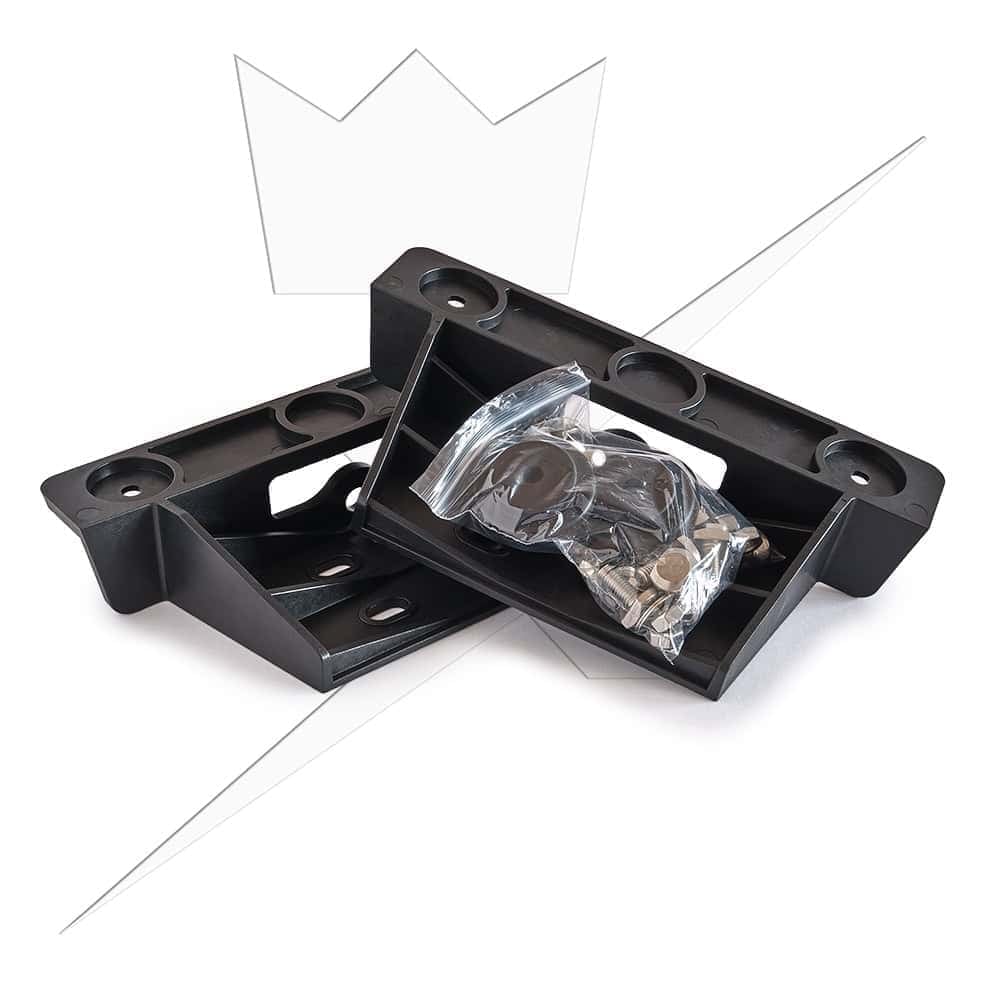

• Weight: 8 kg with bracket
• E-marked (E9), ECE R10, ECE R65 Class 1, CE and RoHS

Wiring

Three wires: red positive, black negative and yellow to change the flash pattern. A manual is included.

Only two of the flash patterns are approved to ECE R65. The cable length is 500 mm.
