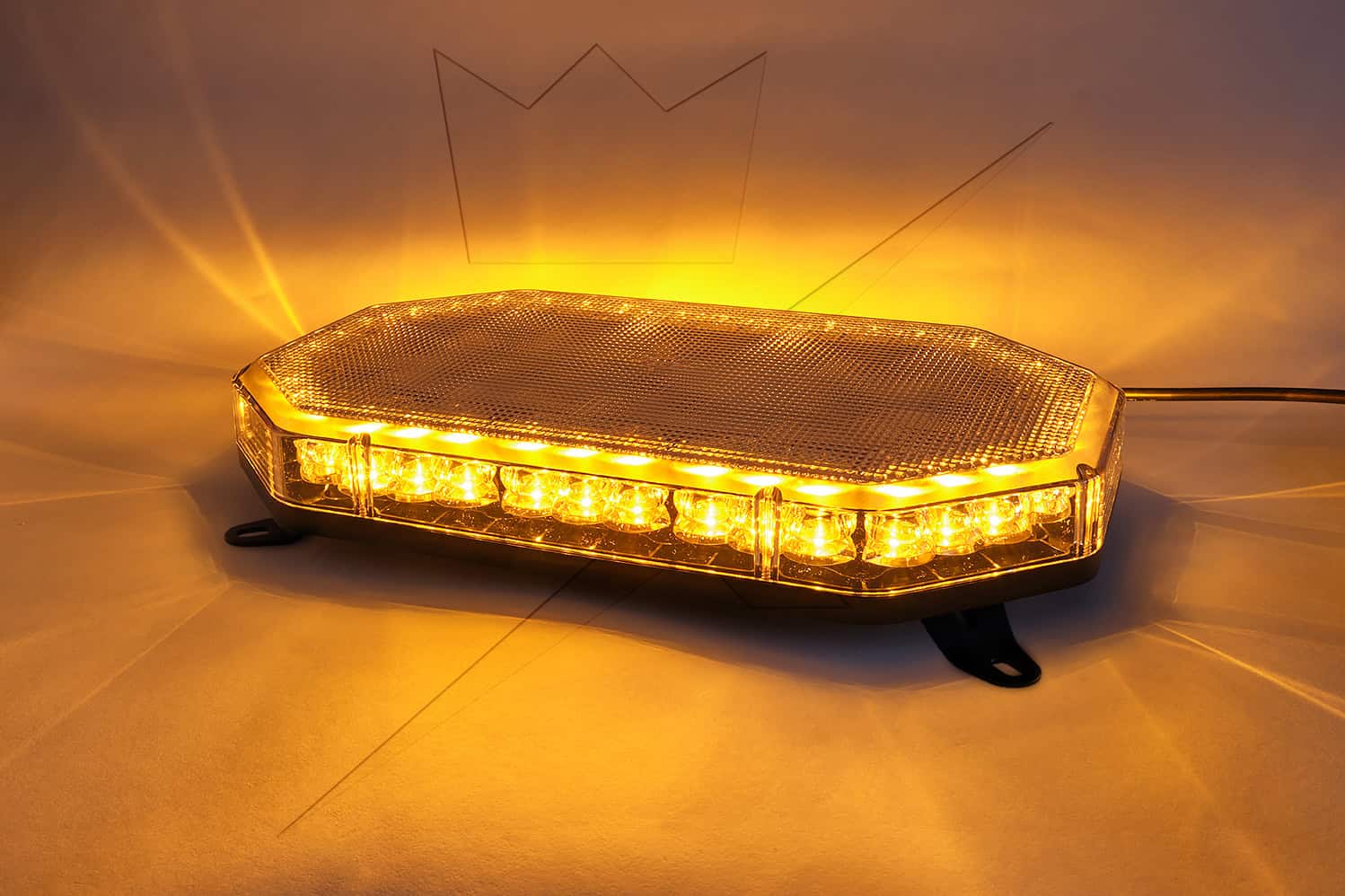

PS30 Warning Light Bar 356 mm

The PS30 is a compact, low-profile amber light bar, 356 mm wide, approved to ECE R65 Class 1 and ECE R10 for minimal radio interference. At about 2 kg with brackets it is light and easy to install.

Specifications

• 36 LEDs of 1 W, 10 flash patterns
• Amber
• 10-30 V, 36 W
• Current: 3.0 A at 12 V, 1.5 A at 24 V
• IP67, −40 °C to +65 °C
• Size: 356 × 210 × 79 mm with bracket

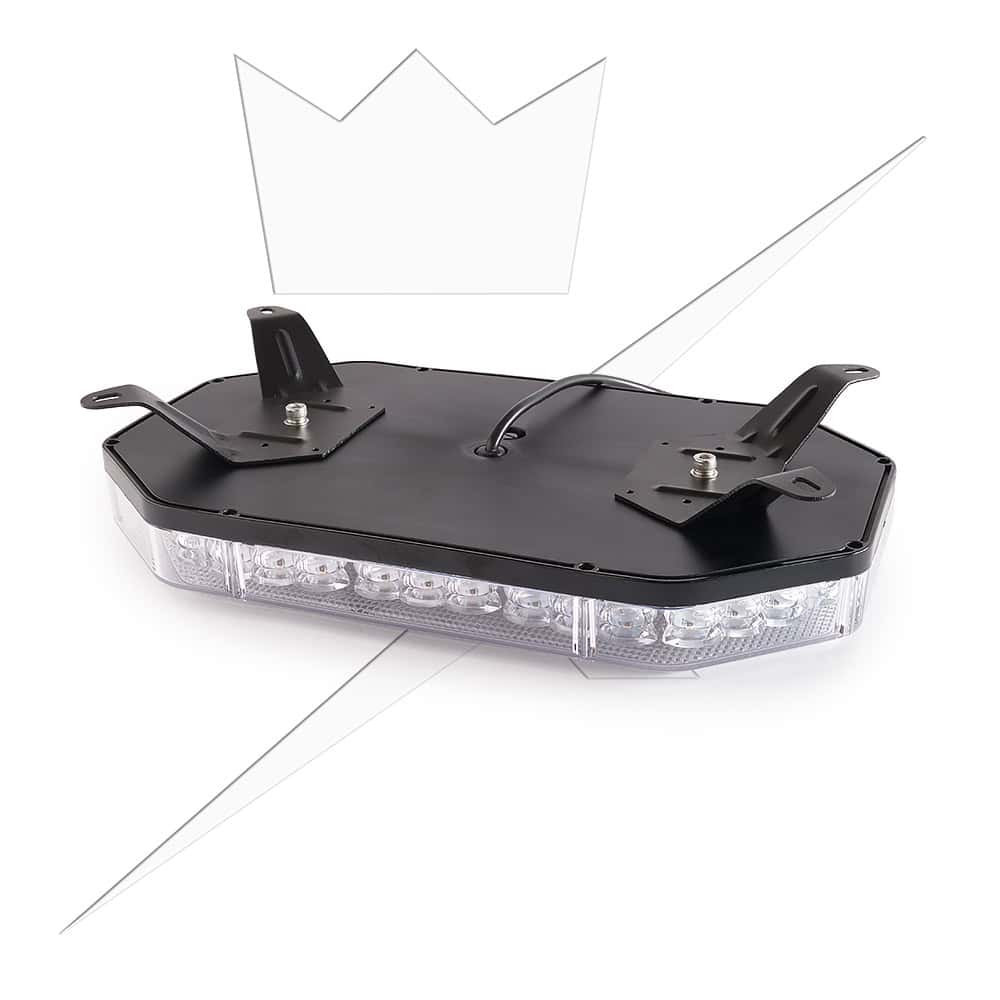

• Weight: about 2 kg with bracket
• E-marked, ECE R10 and ECE R65 Class 1

Wiring

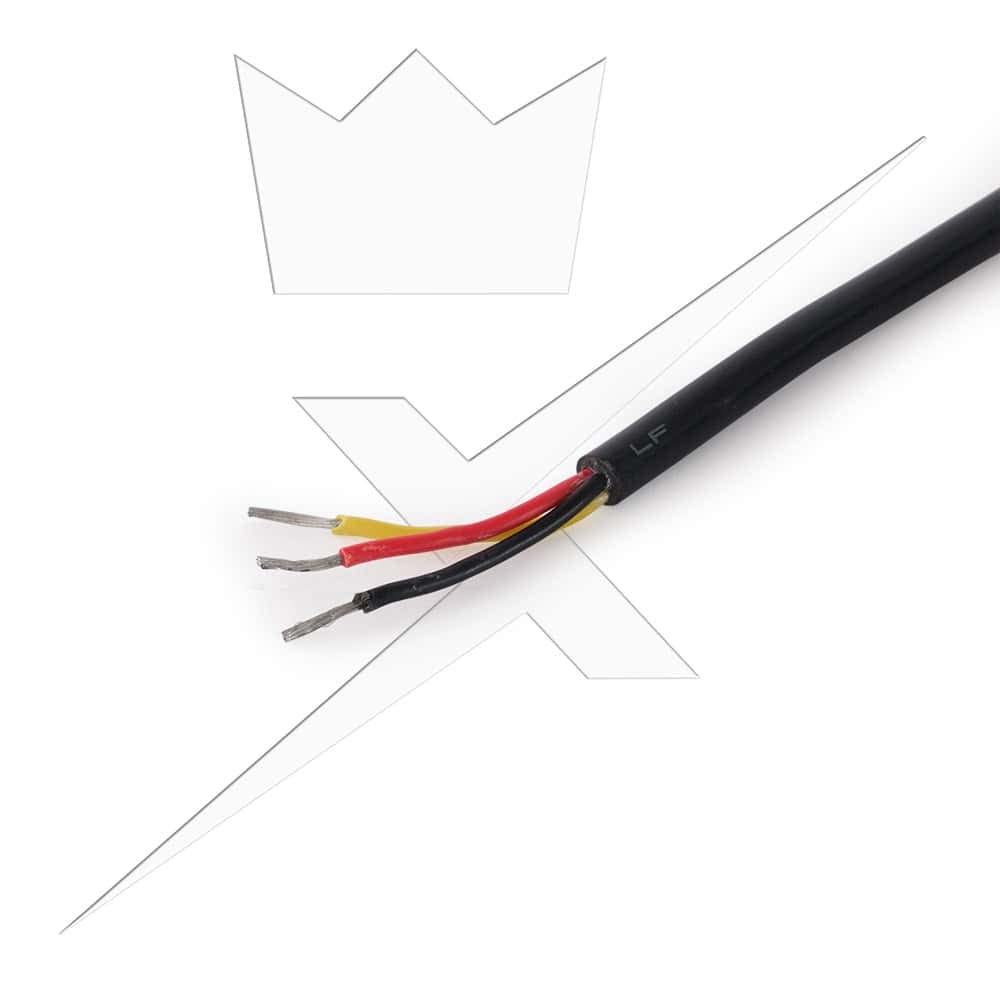

Three wires: red to battery positive, black to ground and yellow to change the flash pattern. A manual is included.

Only two of the flash patterns are approved to ECE R65. The cable length is 500 mm.
